Máy nén khí trục vít không dầu

Category:

Oil free Screw Compressor :
DSP Series V-type

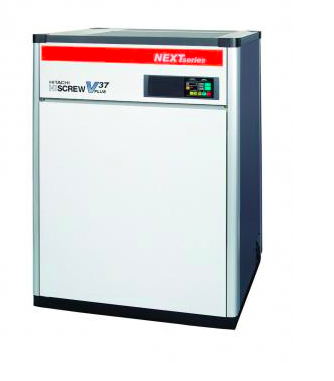

Máy nén khí Trục vít không dầu Hitachi : 22Kw ~ 55Kw

Liên hệ: 0917.266.966

Máy nén khí Trục vít không dầu Hitachi : 22Kw ~ 55Kw

Oilfree Screw Compressor : DSP Series V-type [Single Stage] Air-Cooled Type : Specifications

Model item, unit			Without Dryer Model			Dryer built-in Model
			DSP-22VA5I DSP-22VA6I	DSP-37VA5I DSP-37VA6I	DSP-55VA5I DSP-55VA6I	DSP-22VAR5I DSP-22VAR6I	DSP-37VAR5I DSP-37VAR6I	DSP-55VAR5I DSP-55VAR6I
Rated specs	Discharge air pressure	MPa	0.69
	Capacity	m³/min	3.4	4.2	6.4	3.4	4.2	6.4
In PQ wide mode	Discharge air pressure	MPa	0.39	0.49	0.39	0.49
	Capacity	m³/min	4.3	5.0	8.2	4.0	5.0	7.6
Operating range of PQ wide mode		MPa	0.39 - 0.69	0.49 - 0.69	0.39 - 0.69	0.49 - 0.69
Intake air press./temp.		°C	Atmospheric pressure /0-40			Atmospheric Pressure/5-40
Driving method		—	V-belt + Gear-driven
Capacity control system		—	Inverter control + purge control
Discharge air temperature		°C	Atmospheric temperature + 15 or less
Discharge pipe diameter		B	1	1 1/2		1	1 1/2
Motor Output		kW	22	37	55	22	37	55
Motor type		—	4-pole TEFC Motor
Starting Method		—	Inverter
Cooling fan motor output		kW	0.75	0.75	0.9	0.75	0.75	0.9
Coolant pump motor output		kW(50/60Hz)	0.2/0.3
Lubricating oil capacity		L	12(Not filled in)	18(Not filled in)		12(Not filled in)	18(Not filled in)
Dryer	Dew point of outlet air	Celsius	—			10 or Less (Ambient temp.30 celsius)
	Chiller output	kW				1.1
	Refrigerant	—				HFC-R407C
	Fan motor output	W				25	120
Weight		kg	850	1,080	1,180	880	1,230	1,330
Dimensions (W × D × H)		mm	1,650 × 970 × 1,400	1,780 × 980 × 1,500		1,650 × 970 × 1,400	2,180 × 980 × 1,500
Noise level (1.5m from front side)		dB[A]	63	66	68	63	66	68
